Detecting an Attacker Dumping Passwords from the Windows Registry

Several tools are available to dump password hashes from the Windows registry such as Mimikatz and gsecdump. Attackers commonly dump domain cached credentials, local user credentials, and LSA secrets from the registry

In this post, I will provide the steps for configuring object access auditing so that you can detect an attacker extracting password hashes from the Windows registry.

These auditing settings can be applied to endpoints across your environment via Group Policy but in this example, I will be applying the settings to a single computer.

Configure Registry Auditing to Detect Access to Registry Hives/Keys

Under the “Local Computer Policy” settings (Group Policy if applying settings from a domain controller, turn on “Audit object access” for successful and failed access events.

In regedit.exe, apply the configuration below to monitor for successful and failed read attempts to the following root keys and subkeys:

Cached Domain Credentials:

HKLM\Security (This key only)
HKLM\Security\Cache (This key and subkeys)
HKLM\System (This key only)

LSA Secrets

HKLM\Security (This key only)
HKLM\Security\Policy\Secrets (This key and subkeys)
HKLM\System (This key only)

Local password hashes

HKLM\Sam (This key only)
HKLM\System (This key only)

Detect Access Attempts to Registry Keys and Sub-Keys

You will see Event ID 4656 logged when password hashes are dumped from the registry using tools such as as Mimikatz, Pysecdump, Metasploit.

mimikatz # lsadump::cache

Detect Use of reg.exe to Save Registry Hives

You will also see Event ID 4656 when reg.exe is used to save the HKLM\Security, System, or Sam registry hives.

reg.exe SAVE HKLM\sam sam_backup.hiv

reg.exe SAVE HKLM\security security_backup.hiv

reg.exe SAVE HKLM\system system_backup.hiv

I hope you found this information useful. Please feel free to contact me with any questions or share any other techniques you have for detecting password dumping activity.

Detecting an Attacker Dumping Passwords from Memory

Mimikatz (https://github.com/gentilkiwi/mimikatz) is a popular tool used by adversaries (and Red Teamers) to dump passwords from memory. Password dumping from memory is more difficult to detect than dumping passwords from the Windows registry.

In this post, I will provide the steps for how to detect passwords being dumped from memory by configuring Sysmon v6. You can then filter the logs before forwarding the appropriate sysmon events to your SIEM.

Install and Configure Sysmon v6

Download Sysmon v6: https://technet.microsoft.com/en-us/sysinternals/sysmon

Create a file named sysmon_config.xml and copy the configuration below into the file.

<Sysmon schemaversion="3.3">
    <HashAlgorithms>SHA256</HashAlgorithms>
    <EventFiltering>
        <ProcessAccess  default="include">
        </ProcessAccess >
    </EventFiltering>
</Sysmon>

Install Sysmon using the configuration file you created:

sysmon64.exe -i .\sysmon_config.xml

Validate that the configuration has been applied by dumping the current sysmon configuration:

sysmon64.exe -c

Dump Passwords From Memory Using Mimikatz

To test the Sysmon Process Access logging, dump your passwords from memory using Mimikatz.

PS C:\Users\fmfx009\Downloads\mimikatz_trunk\x64> .\mimikatz.exe
privilege::debug
sekurlsa::logonpasswords

Review Sysmon Event Logs for Mimikatz Usage

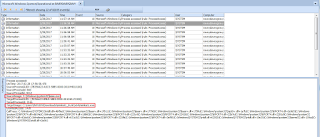

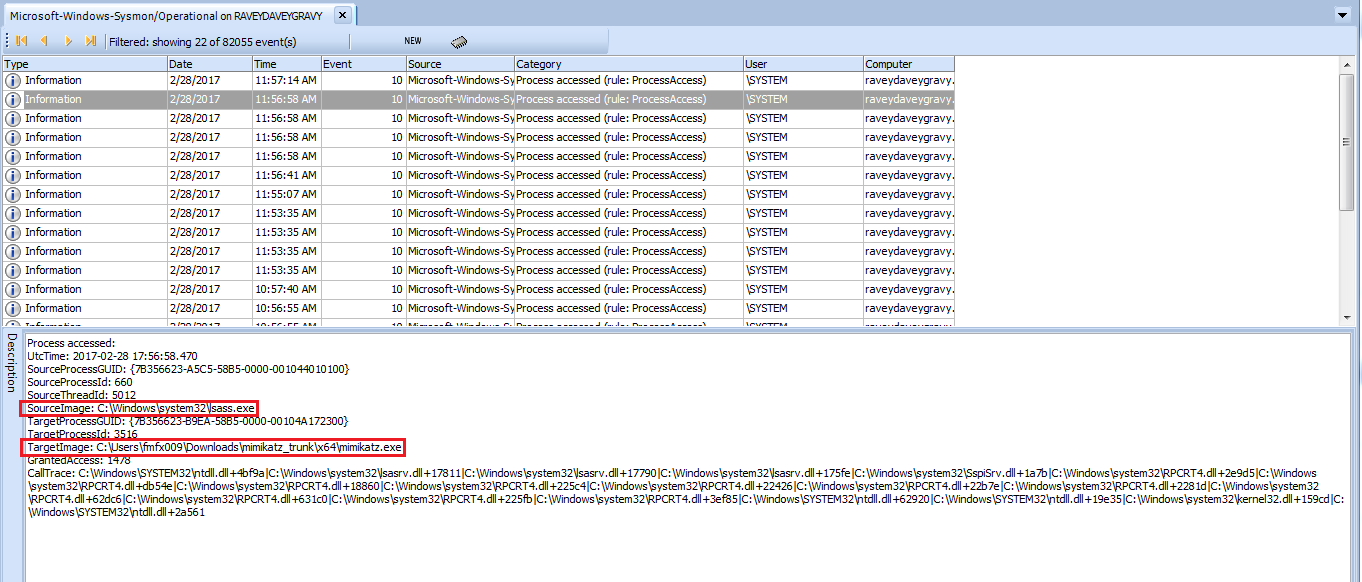

Access the Sysmon logs via the Event Viewer under Microsoft-Windows-Sysmon/Operational or use the filtering features of Event Log Explorer.

Apply a filter to view all events with Event ID 10, “Process accessed”.

You should see evidence of SourceImage: lsass.exe accessing TargetImage: mimikatz.exe. You should also see evidence of SourceImage: mimikatz.exe accessing TargetImage: lsass.exe

I will write some additional posts soon on how to detect other credential dumping tools on your endpoints.

Please feel free to contact me with any questions. If you have any other techniques for detecting password dumping activity, I would be happy to hear from you. I hope this information helps.

I experienced issues configuring Sysmon v6 to monitor Process Access and have reported a bug to Mark Russinovich; the current configuration output shows Process Access as disabled when it is actually enabled.

How to Setup a Cowrie SSH Honeypot

Cowrie is a medium interaction SSH and Telnet honeypot, which can log brute force attacks and an attacker's shell interaction. Cowrie is an excellent project developed by Michel Oosterhof.

This post provides instructions on how to configure a Cowrie SSH honeypot on an Ubuntu 16.04 system. I recommend that you configure Cowrie on a cloud server instance rather than a host on your home network.

I will publish another post soon to show how to visualize the attacker's activity in Splunk.

Change the Port You Will Use to Administer the Server

Cowrie will be listening for SSH connections on port 22. You'll want to configure the SSH service to listen on a different port for you to connect to and administer the server.

sudo vi /etc/ssh/sshd_config

Under "# What ports, IPs and protocols we listen for", change the port number to 3393 or your preferred port number.

Write your changes and quit vi.

Ctrl + C

:wq

Restart the SSH service.

service ssh restart

By running the command below, you can see that the server is now listening for connections on port 3393.

netstat -tan
Proto Recv-Q Send-Q Local Address           Foreign Address         State
tcp0      0 0.0.0.0:3393            0.0.0.0:*               LISTEN

Install and Configure Cowrie

Download updated package lists.

sudo apt-get update

Install Cowrie's dependencies.

sudo apt-get install python2.7 git virtualenv libmpfr-dev libssl-dev libmpc-dev libffi-dev build-essential libpython-dev python-pip

Add a new user named, cowrie.

sudo adduser --disabled-password cowrie

Switch to the new user, cowrie

sudo su - cowrie

Navigate to the home directory of user, cowrie, and clone the cowrie git repository.

git clone https://github.com/micheloosterhof/cowrie.git

Create a new virtual environment for cowrie.

cd cowrie

virtualenv cowrie-env

Activate the virtual environment.

source cowrie-env/bin/activate

The terminal will display "(cowrie-env)" before the username, cowrie.

Install pycrypto, Crypto and other requirements.

pip install pycrypto Crypto

(cowrie-env)$ pip install -r requirements.txt

Generate a DSA key for the cowrie instance.

cd data

ssh-keygen -t dsa -b 1024 -f ssh_host_dsa_key

cd ..

export PYTHONPATH=/home/cowrie/cowrie

Additional Cowrie Configuration

Make a copy of the config file for your new cowrie instance.

cd /home/cowrie/cowrie/

cp cowrie.cfg.dist cowrie.cfg

vi ./cowrie.cfg

Set the hostname in the configuration file to a server name of your choice. E.g. "fileserver4"

Change the "Port to listen for incoming SSH connections" to port 22.

Write your changes and quit vi.

Ctrl + C

:wq

Enable authbind in cowrie's start.sh file.

sudo vi /home/cowrie/cowrie/start.sh

Change line 2 to read:

AUTHBIND_ENABLED=yes

sudo apt-get install authbind

sudo touch /etc/authbind/byport/22
sudo chown cowrie /etc/authbind/byport/22
sudo chmod 777 /etc/authbind/byport/22

Start Cowrie

Execute the following commands to start Cowrie.

sudo su cowrie

cd /home/cowrie/cowrie/

source cowrie-env/bin/activate

./start.sh

Verify cowrie is listening on port 22 by running the command below.

netstat -tan

Active Internet connections (servers and established)
Proto Recv-Q Send-Q Local Address           Foreign Address         State
tcp        0      0 0.0.0.0:22              0.0.0.0:*               LISTEN

Execute the following command to stop Cowrie.

./stop.sh

How to Stop and Start the SSH Service (Running on the Custom Port You Chose Earlier)

If your server is accessible via a console in your cloud provider's management console, you may want to disable the SSH service on your server and enable it only when you need to establish a SSH connection to administer it.

This will prevent SSH brute force attacks against the listening service.

Execute the following command to stop the SSH service.

sudo /etc/init.d/ssh stop

Validate that the server is no longer listening on the custom SSH port. You should see that Cowrie is still listening on port 22.

netstat -tan

Execute the following command to start the SSH service.

sudo /etc/init.d/ssh start

Test Connectivity to the Cowrie Honeypot

Connect to your server on port 22, enter any password and you will be authenticated successfully.

Execute some commands for Cowrie to log.

Review the Cowrie Log File

Connect to your server (not the Cowrie instance) and review the log file.

cat /home/cowrie/cowrie/log/cowrie.log | less

The attacker's IP address will be shown in the red areas in the image below.

I will be writing a post soon on how to visualize the attacks against your honeypot using Splunk.

Detecting Lateral Movement Using Sysmon and Splunk

Detecting an attacker moving laterally in your environment can be tough. It can be difficult to obtain the necessary logs to identify this activity and differentiate between what is normal and what is malicious.

This post highlights a few things that you can look out for that could identify an attacker moving between hosts. With sysmon installed on Windows hosts and the events being sent to SIEM, you can detect attempts to move laterally and questions during incident response can be answered in minutes versus hours.

Install and Configure Sysmon on a Windows Host

Download sysmon and install it on the Windows host as follows.

sysmon -i -n

You can view sysmon events locally by opening Event Viewer and navigating to Microsoft  - Windows - Sysmon - Operational. You can see that Sysmon logged the creation of a new process, powershell.exe, in the image below.

Add the following text to the inputs.conf file.

[WinEventLog://Microsoft-Windows-Sysmon/Operational]

disabled = false

renderXml = true

Sysmon events from the host can now be found in Splunk under sourcetype="XmlWinEventLog:Microsoft-Windows-Sysmon/Operational"

Install the Splunk "Add-on for Microsoft Sysmon"

Download the add-on from the following location:

https://splunkbase.splunk.com/app/1914/#/overview

Unzip the contents of the compressed file to following folder on the Splunk server:

C:\Program Files\Splunk\etc\apps

Restart Splunk Light.

Events in sourcetype="XmlWinEventLog:Microsoft-Windows-Sysmon/Operational" should now be parsed into the appropriate fields.

Sysmon Event Codes

In the examples below, we are interested in the following sysmon event IDs:

Event ID 1: Process creation

Event ID 3: Network connection

Refer to the official sysmon page for further details on the various Event Codes.

https://technet.microsoft.com/en-us/sysinternals/sysmon

Detecting an Attacker Establishing SMB Sessions to Move Laterally

Attacker uses the following command or similar to establish a session to the victim.

net use \\192.168.1.88

Search sysmon events in Splunk to identify the suspicious SMB (Port 445) session established between the two Windows hosts. See the search string below.

sourcetype="XmlWinEventLog:Microsoft-Windows-Sysmon/Operational" 192.168.1.90 445 | table _time, EventCode, EventDescription, host, SourceIp, src_port, User, DestinationIp, DestinationPort, Image, ProcessID, Protocol

Run the following command on the victim to view the established SMB session to the attacker.

netstat nao | find "ESTABLISHED"

Is it normal for a SMB session to be established between these two hosts? Analyze events in your environment, understand what is normal in terms of process creation/termination and network connections established between hosts, and have your analysts investigate and identify abnormal activity.

Detecting an Attacker Using PowerShell to Move Laterally

Windows RemoteManagement (WinRM) traffic initiated via PowerShell will traverse ports 5985 and 5986.

In this example, the attacker executes the commands below to remotely execute scripts on the victim or establish a connection to the victim.

In Splunk, we can see the following sysmon events to identify the suspicious activity.

We can see WinRM traffic from the attacker to the victim over port 5985.

sourcetype="XmlWinEventLog:Microsoft-Windows-Sysmon/Operational" 5985 OR 5986 | table _time, EventCode, EventDescription, host, SourceIp, src_port, User, DestinationIp, DestinationPort, Image, ProcessID, Protocol

We can see the WinRM Remote PowerShell process (wsmprovhost.exe) on the victim start the ping.exe and systeminfo.exe processes. We can also see the strings entered on the command line. Would this behavior be normal in your environment?

sourcetype="XmlWinEventLog:Microsoft-Windows-Sysmon/Operational" wsmprovhost.exe | table _time, EventCode, EventDescription, host, Image, ProcessID, ParentProcessId, CommandLine

It is possible that the above activity happens often in your environment, which can make it challenging to differentiate between expected and malicious activity. Attackers will use tools that are native to the OS in the hope that their activities go unnoticed. It is important to be familiar with what's normal in your environment and monitor for behavior that is out of the ordinary.

Mounting a BitLocker Encrypted Image Using Dislocker

Sometimes it is necessary to boot a host into an alternate OS to acquire a raw disk image. If you need to mount the image for forensic analysis in Linux, this can present a problem if the disk was encrypted using Microsoft's BitLocker.

If you have the BitLocker recovery key, you can mount the image in Linux using Dislocker as follows. These steps were executed on an Ubuntu 14.04 LTS system.

Install Dislocker

Install Dislocker's dependencies.

aptitude install gcc cmake make libfuse-dev libpolarssl-dev ruby-dev

Clone the Dislocker Git repository.

git clone https://github.com/Aorimn/dislocker.git

Navigate to the dislocker directory you just created.

cd dislocker

Make and install the binaries on your system.

cmake .
make
sudo make install

Mount the Image

Create a temp directory where you will mount the image.

mkdir /mnt/dislocker

Read the encrypted raw image using dislocker.

dislocker -v -V /media/images/myimage.bin -p<BITLOCKER-RECOVERY-KEY>  /mnt/dislocker

Further details about the above command.

-v - Increase verbosity (CRITICAL errors are displayed by default)

-V - Volume to get metadata and keys from

​/media/images/myimage.bin - Path and file name of encrypted image

-p<BITLOCKER-RECOVERY-KEY> - BitLocker recovery key to unencrypt image. Replace <BITLOCKER-RECOVERY-KEY> with actual recovery key

/mnt/dislocker - Path to load dislocker file, which will be mounted later
Create a folder to mount the image.

mkdir /tmp/temp/

Mount the dislocker file as read only to the /mnt/temp directory

mount -o loop,ro /mnt/dislocker/dislocker-file /mnt/temp

Further details about the above command.

-o loop,ro - Mount the filesystem using the loopback device. Mount as read-only

/mnt/dislocker/dislocker-file - Path and file name of unencrypted dislocker file

/mnt/temp - Path to mount the unencrypted image as a drive

The unencrypted image is mounted under /mnt/temp

List the contents of the mounted image.

ls /mnt/temp

Acquire an Image of the Mounted Disk in an Unencrypted State

You may want to take another image of the mounted image in its unencrypted state. This can be useful if you need to load the image into a forensic tool for analysis.

You can use ddrescue to take a raw image of the mounted image as follows.

ddrescue -v /mnt/temp/dislocker-file /media/images/my_unencrypted_image.bin

Further details about the above command.

-v - Verbose logging

/mnt/temp/dislocker-file - Location of file you want to image in unencrypted state

/media/images/my_unencrypted_image.bin - Location to save new image file
